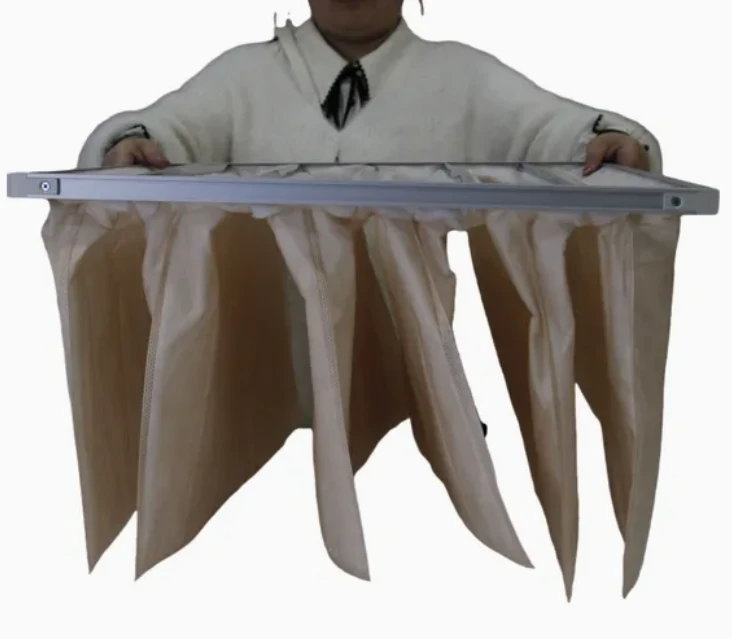

HVAC Pocket Filter

HVAC Pocket Filter

Product Description Applications: Hospital, Pharmaceutical plants, Chip plants, Stockbreeding, Glass screen factory, Photovoltaic plants, PCB factory, Painting booth, Semi-conductor plant, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction works,...
Send Inquiry
Add To Inquiry
Description
Technical Parameters

Products Description

Part No. HZJ-M-2001 Efficiency F6
Filtration grade Medium Type Pocket filter
Size 24x24x30 Colour Yellow
Frame Steel Filter media Synthetic fiber
Max. Temp. 180 °F Production capacity 10,000pcs per day
Transport Package Standard carton Certificates
Place of origin Jiangsu, China Warranty 1 year
Air flow 3400m3/h Resistance 100Pa
Advantages High capacity for dust collection Disadvantages
Application Hospital, Pharmaceutical plants, Chip plants, Stockbreeding, Glass screen factory, Photovoltaic plants, PCB factory, Exhibition center, Painting booth, Semi-conductor plant, Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Construction works, Energy & Mining,

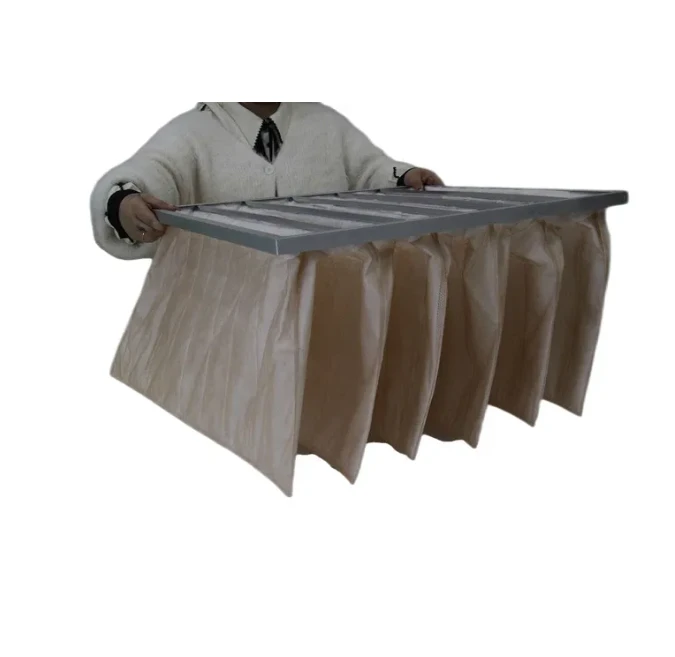

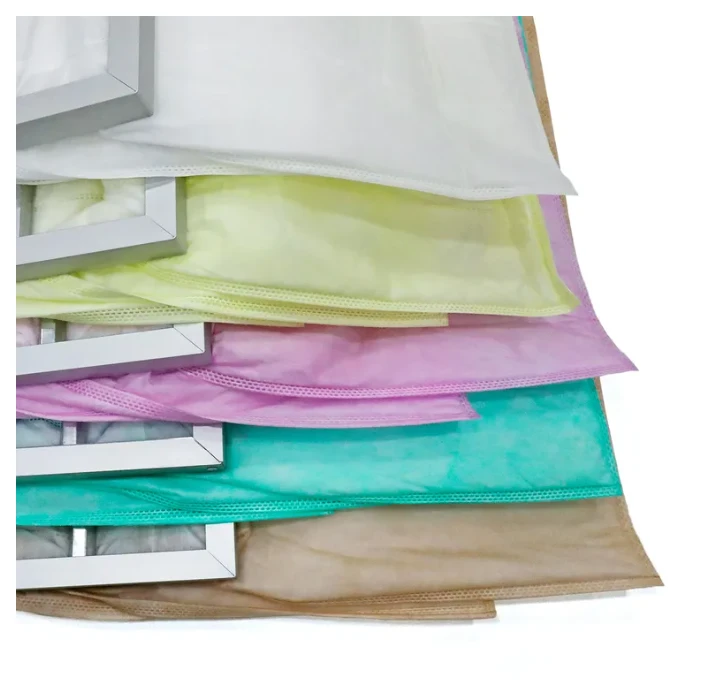

Pocket filter or bag filter can capture more air pollutants than non-pleated panel filter. It can be used in many applications to improve indoor air quality. It usually used between pre filter and high efficiency filter. The efficiency rating covers from G4 to F9. The advantages of pocket filters are high capacity of collecting dust, easy to replace and low cost. The pocket/bag filters are mainly used in HVAC systems.
product-675-657
product-705-690

Application: HVAC medium filters, industrial, spray booth, Hospital, Pharmaceutical plants, Chip plants, Stockbreeding, Glass screen factory, Photovoltaic plants, PCB factory, Exhibition centre, Painting booth, Semi-conductor plant, Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Construction works, Energy & Mining,

Filter Frame: Steel
Filter Media: Synthetic fibre
Filter efficiency: F8
Media colour: Yellow
Initial Pressure drop: 100Pa
Maximum temperature: 180°F

Metric (mm) Imperial (") Colour Efficiency rating
592x592x760 x8p 24x24x30 x8p yellow F8
592x592x381 x8p 24x24x15 x8p yellow F8
592x592x500 x8p 24x24x20 x8p yellow F8
592x592x600 x8p 24x24x24 x8p yellow F8
592x592x760 x6p 24x24x30 x6p yellow F8
592x592x381 x6p 24x24x15 x6p yellow F8
592x592x500 x6p 24x24x20 x6p yellow F8
592x592x600 x6p 24x24x24 x6p yellow F8
287x592x760 x4p 12x24x30 x4p yellow F8
287x592x381 x4p 12x24x15 x4p yellow F8
287x592x500 x4p 12x24x20 x4p yellow F8
287x592x600 x4p 12x24x24 x4p yellow F8
287x592x760 x3p 12x24x30 x3p yellow F8
287x592x381 x3p 12x24x15 x3p yellow F8
287x592x500 x3p 12x24x20 x3p yellow F8
287x592x600 x3p 12x24x24 x3p yellow F8
*Any other sizes can be customized; colour &number of pockets can be customized as well

Product Attributes

Clapboard without Clapboard Filter Number 6pockets
Medium Material Synthetic Fiber Model NO. HZJ-M-2001
Efficiency F7 Filtration Grade Medium Filter
Type Bag Filter Transport Package Carton Box
Specification 24x24x30 Trademark HZJ FILTER
Origin China HS Code 8421999000
Production Capacity Production Capacity Package Size 60.00cm * 50.00cm * 40.00cm
Package Gross Weight 22.500kg
