Air Filtration System
Your Professional Air Filtration System Supplier!
Suzhou Huazhijie Purification Technology Co., Ltd., was established in 2012. With strong technical strength and advanced equipment, it can provide high-quality products, professional services and comprehensive solutions for the high-efficiency air purification industry. Our products include primary-efficiency filter cotton, medium-efficiency filter bags, primary, intermediate and high-efficiency filters, FFU, air showers, transfer windows, static pressure boxes and purification workbench and other purification equipment, HPEA products, activated carbon filters, chemical Filters, high temperature resistant filters, replaceable and washable filters, etc.
Why Choose Us
Customized Service
We provide personalized air purification solutions tailored to your needs. We tailor air purification systems to meet your unique air purification needs, taking into account factors such as the spatial layout, pollutant types, and concentrations of each location.
Professional Team
We employ a team of engineers and technicians with extensive expertise and experience in air purification. They continuously research and develop new air purification technologies and products to meet the increasingly diverse needs of the market.
Advanced Equipment
We are equipped with cleanroom production lines, a state-of-the-art R&D center, and sophisticated testing equipment, ensuring efficient and precise production.
Patent Certificate
We have successfully obtained ISO 9001:2015 quality management system certification, comply with ISO 9001 standards, and have also obtained multiple patents.
Air Shower Clean Bench Specification
|
Main Controller |
Microprocessor Control with All Color Touch Screen |
|
Winding Velocity |
0.3 - 0.5m/sec |
|
Velocity control |
3 stage |
|
Purity |
Lower than Class 100 |
|
Main Filter |
HEPA filter/ 0.3 micron 99.97% efficiency |
|
Pre Filter Size |
600 X 400 X 20 (H)mm |
|
HEPA Filter Size |
1,240 X 540 X 75 (H)mm |
|
Dimension (in) |
1,200 X 620 X 710 (H)mm |
|
Dimension (out) |
1,320 X 790 X 1,920 (H)mm |
|
Material (in) |
Working table : Stainless steel SUS304 |
|
Material (out) |
Cabinet: Steel plate with powder coating |
|
Illumination |
30W Fluorescent Lamp x 2EA |
|
UVG Lamp |
30W X 2EA |
|
UV Timer |
15, 30, 60min, Hold |
|
Utility |
Outlet, Gas faucet, Vacuum faucet, Hour meter |
|
Door |
Sliding Glass door, Tempered Safety Glass |
|
Power |
220V, 480W, 50Hz |
● Efficient up to 99.97% at 0.3 um with HEPA filters.
● Easily notice the replacement timing of the HEPA filter
● Compact switch type control panel.
● Flow can be adjusted by two stages, strong /weak.
● Clear glass window for easy view into the work zone.
● UV lamp operation can easily be notified.
● Safe workbench with vertical laminar airflow.
Types of Air Shower Clean Bench
|
Type |
Features |
|
Built-in type |
Floor-standing units are built into equipment without the workbench. |
|
Vibration-free type |
This type has a gap between the workbench and the main unit, preventing the direct transmission of vibration. |
|
Drying type |
This type includes an infrared lamp for performing drying on the workbench. |
|
Light table type |
This type combines a fluorescent lamp with an acrylic or glass workbench. |
|
Exhaust type |
This type enables air exhaust from the workbench or a section of it. |
|
Water supply/drainage type |
The workbench or a section of it includes a sink with a faucet at the front. |
|
Circulation type |
This type circulates clean air. |
The air shower clean bench is a workbench designed to ensure that the top of the bench is clean. It is constructed with a clean box unit on top of the bench. That are box-shaped enclosures that consist of a bench and walls on the front, top, and both sides. Workers place their hands inside the enclosure to perform work. Air pulled in from the outside is filtered to remove dirt and dust, and then the clean air is sent inside the bench.
There are two types of air shower clean benches: a horizontal blower type that blows air forward from the front surface, and a vertical blower type that blows air downward from the top surface. In the case of horizontal blowers, the air might collect around the worker's arms or the equipment, preventing a sufficient level of cleanliness.
Air Shower Clean Bench Applications
● Work with non-hazardous materials were clean, particle-free air quality is required.
● A built-in UV light positioned at the front of the cabinet, enables the clean cabinet to be suitable for PCR applications.
● Servicing of microelectronics and sensitive instruments by installing an ULPA filter.

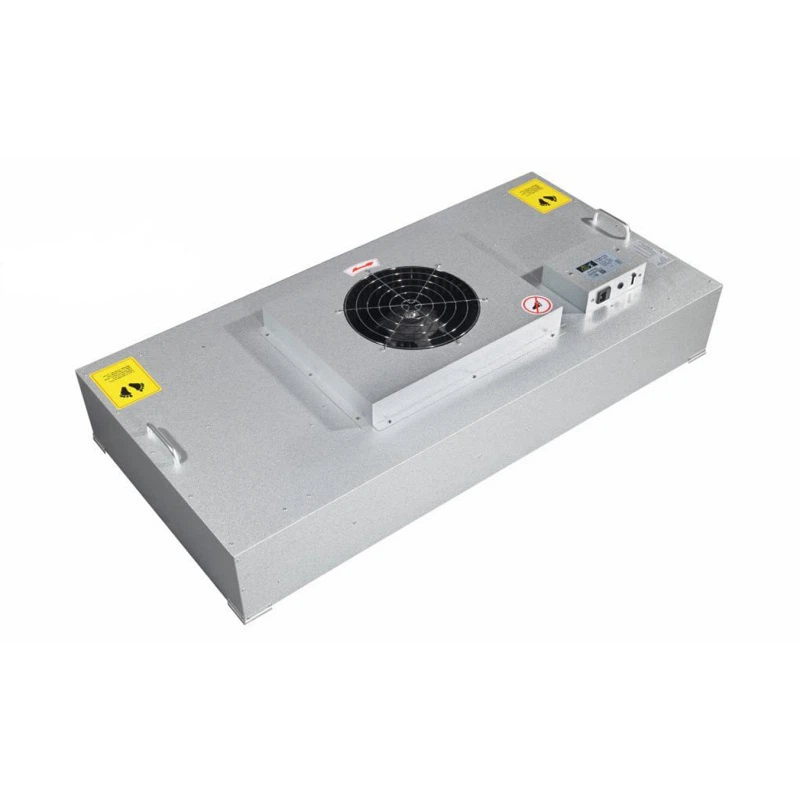

FFU Specification
|
Size |
1175*575*320 mm; 1175*1175*320 mm; 575*575*320 mm Or Customized |
|
Airflow Volume |
2000 m³/h |
|
Power Supply |
220V/50Hz or customized |
|
Filter Efficiency |
HEPA or ULPA filters (99.99% efficiency) |
|
Noise Level |
≤ 50dB |
|
Control Mode |
Manual, Remote, or Smart Control |
|
Service Life |
≥ 60,000 hours |
Advantages Of FFU
Flexible and easy to replace and install
FFU has its own power. It is also self-contained and modular, and the matching flter is easy to replace, so it is not restricted by the area. In the cleanroom, it can be controlled according to the needs and replaced and moved as needed.
Negative pressure ventilation
Since FFU can provide static pressure, the cleanroom has a positive pressure relative to the outside, so that external particles will not be leaked into the clean area, making the seal simple and safe.
Short installation period
Using FFU eliminates the production and installation of air ducts and shortens the construction period.
Small operating costs
Although the initial investment is higher than the use of air ducts when selecting FFU, it has outstanding features such as energy- saving and maintenance-free in the later operation.
Space-saving
Compared with other systems, the FFU system occupies less floor height in the air supply static pressure box and basically does not occupy cleanroom space.
FFU Applications
FFU, sometimes also called laminar flow hood, can be connected and used in a modular manner and is widely used in clean room, clean work bench, clean production lines, assembled clean room and laminar flow clean room.
FFU is equipped with primary and HEPA two-stage filters. The fan sucks the air from the top of the fan filter unit and filters it through the primary and HEPA filters.
Packaging and Shipping
|
Packaging |
Wooden box, PE film |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
Our Certificate
FAQ
As one of the leading air shower clean bench or ffu manufacturers and suppliers in China, we warmly welcome you to wholesale discount air shower clean bench or ffu made in China here and get quotation from our factory. All our products are with high quality and competitive price.
cleanroom bench, purification equipment, customized clean bench
