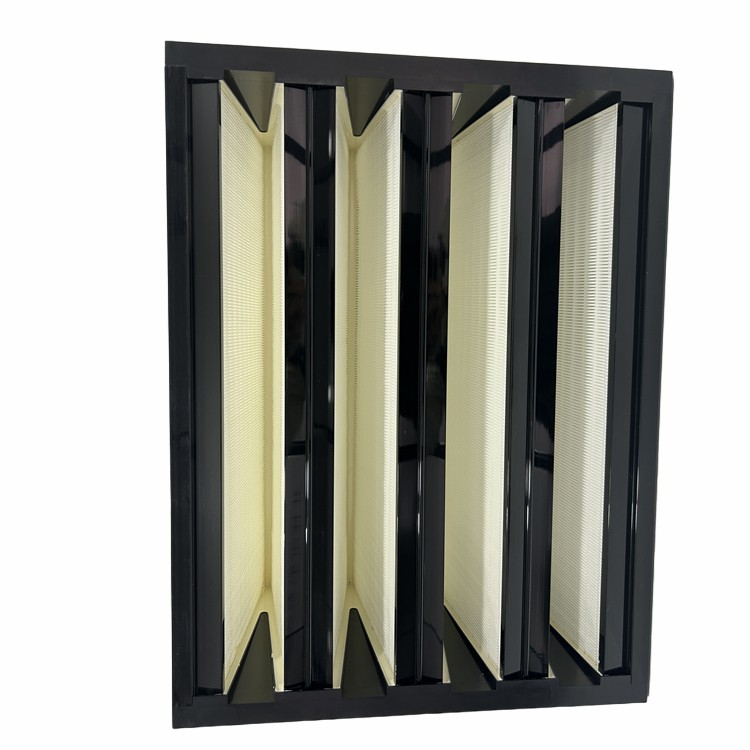

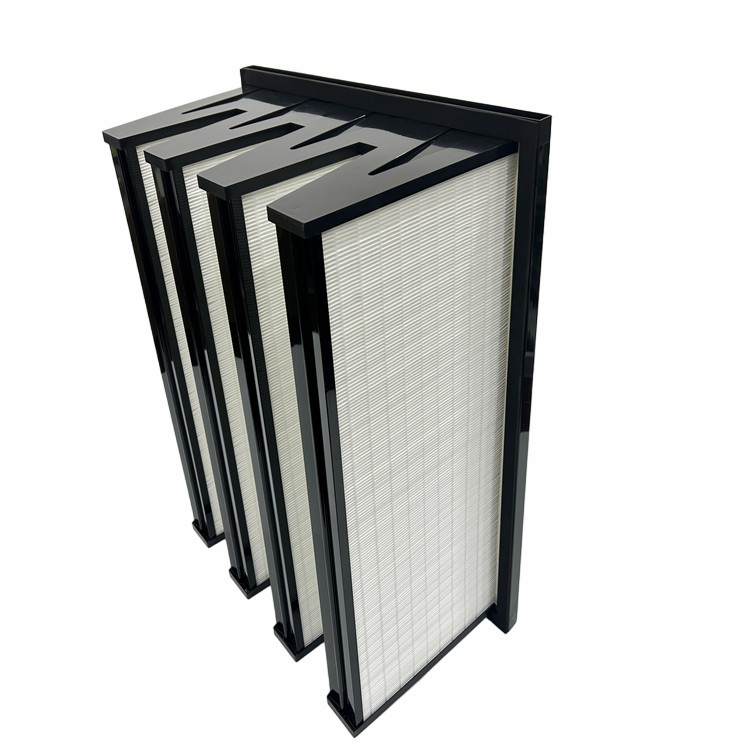

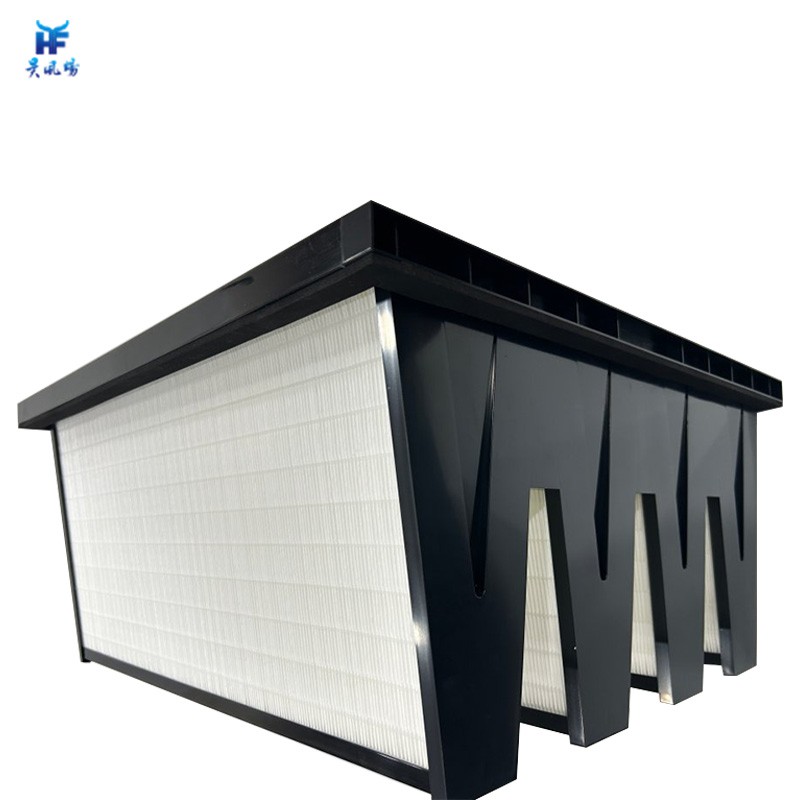

V Bank Air Filter

The V Bank Air Filter adopts a unique multi fold V-shaped structure design, which has the characteristics of low wind resistance, large dust holding capacity, and high filtration efficiency. It is specially designed for places with strict air quality requirements such as clean rooms, biosafety cabinets, and operating rooms, and can effectively intercept particles ≥ 0.3 μ m, with a filtration efficiency of H13 level.



Comparison Table

V Bank vs Flat Plate vs Bag Filter

Comparison items	V Bank Air Filter	Plate Air filter	Bag air Filter
products
efficiency	H13-H14 (99.95-99.995%)	H11-H13 (95-99.95%)	H10-H12 (85-99.5%)
initial pressure	Low(200-250Pa)	Medium(250-300Pa)	High(300-350Pa)
Dust Holding	★★★★★	★★★☆☆	★★★★☆
service life	18-24 months	12-15 months	6-12 months
Applicable scenarios	Clean room,biosafety cabinet	Ordinary laboratory,air conditioning unit	Initial filtration, pre filtration
Cost	High	Medium	Low

Summary of V Bank Air Filter:

1. At the same air volume, the pressure drop is about 20% lower than that of the flat plate type, making long-term operation more energy-efficient.
2. Increase dust holding capacity by over 30%, reduce replacement frequency, and lower maintenance costs.

Selection suggestion:

1. Require ultra-high cleanliness (such as ISO Class 5 and above) → Choose V-type H13.
2. Due to limited budget and average cleanliness requirements, choose flat plate type H11.

• Medical industry:Operating room, sterile preparation room, PCR laboratory.
• Electronic industry:Chip factory, LCD panel clean room.
• Pharmaceutical industry:GMP clean area, biosafety cabinet.
• Food industry:Sterile packaging workshop.
