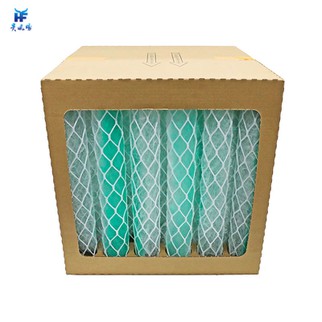

Custom DPA Maze-Type Paint Mist Filter Box
As a 10＋ years air filter manufacturer based in Changshu, Suzhou,we specialize in custom DPA maze-type paint mist filter boxes.It's the go-to solution for trapping overspray in painting environments.This filter features a unique maze-style internal structure (maximizing paint mist capture capacity), a durable special hard cardboard frame (eco-friendly & cost-effective), and a glass fiber + plastic grid filter media (G4 efficiency) – all built to your exact equipment specs. We sell straight from our workshop: skip middlemen, cut costs by 25%, and get a paint mist filter tailored for your spraying setup.
 |
 |
 |
Basic Information
| Brand Name | Huazhijie | Product Name | Paint Booth Filter Box |
| Frame Material | Special Hard Cardboard | Filter Media | Glass Fiber + Reinforced Plastic Grid |
| Frame Thickness | Standard (3mm) / Reinforced (5mm, for 24/7 spray booths) | Filter Media Density | Standard (general spray jobs) / High-Capacity (heavy overspray, e.g., auto body painting) |
| Dimensions | Custom | Paint Holding Capacity | 1.5–3kg (standard) / 3–5kg (high-capacity) |
| Efficiency | G4 | Initial Air Resistance | ≤50Pa (at 400m³/h) |
| Operating Temperature | 0°C to 60°C | Maximum Humidity | 80% RH |
| OEM | Yes | Certifications | ISO 9001 |
Core Features That Solve Paint Mist Headaches
- Maze Design: Max Capacity, Min Replacements
The winding internal structure doubles the contact area between air and filter media – so it holds 40% more paint mist than standard flat filters. This cuts replacement frequency from 1x/week to 1x/2 weeks (huge time & cost savings for busy spray booths).
- Special Hard Cardboard Frame
Eco-friendly & lightweight: Easy to install/swap (no heavy lifting for your team).
Durable enough for paint booth environments: Resists minor moisture and paint splatters (custom reinforced thickness available for high-use spaces).
- Glass Fiber + Plastic Grid Media (G4 Efficiency)
Glass Fiber Layer: Traps 90% of paint mist droplets (G4 efficiency) – prevents overspray from coating booth surfaces or escaping into the air.
Plastic Grid Support: Keeps the glass fiber media from collapsing under wet paint load – maintains consistent airflow.
Perfect for These Workshops
- Automotive Refinishing & Repair Shops: Used in downdraft and semi-downdraft spray booths to capture overspray from basecoats, clear coats, and primers. Protects the booth's exhaust plenum and fan.
- Industrial Manufacturing: For painting metal furniture, machinery, agricultural equipment, and components. Often used in crossdraft booths as the primary or secondary overspray filter.
- Wood Finishing & Cabinet Shops: Captures overspray from lacquers, stains, and varnishes applied to furniture and cabinetry. Helps maintain air quality and reduces cleanup.
- Aerospace & Transportation: Used in large booth applications for painting aircraft parts, trucks, and buses.
- Specialty & DIY Applications: Suitable for portable spray booths, paint rooms, and preparation stations.
Why choose us?
✅10+ Years of Manufacturing Experience: Specialized in air filtration, with ISO9001 and other patent certifications.(About us)
✅ Factory Prices: Direct sales eliminate middleman markup-save up to 20% vs. distributors.
✅ Fast Customization: Tailored filters ready in 15-20 days; standard models ship within 7 days.
✅ Global Support:Our professional team provides 24-hour consulting and usually responds within 4 hours. We can also assist remotely with filter installation, debugging, and maintenance.(Contact Us)
 |
 |
 |
 |
||
Frequently Asked Questions (FAQ)
Q: How often should I replace the DPA filter?
A: Replacement is based on visual inspection and airflow. Typically, replace it when the front faces of the baffles are fully loaded with paint, or when you notice a significant drop in exhaust airflow (the booth door becomes harder to open/pull in). This can range from a week to several months, depending on usage.
Q: Can you make filters for my specific spray booth brand (e.g., Global Finishing, Binks, DeVilbiss)?
A: Yes, absolutely. We regularly produce replacement cartridges for all major spray booth brands. Simply tell us the brand, model, and part number of your current filter, or provide its exact dimensions (L x W x D), and we will manufacture an equivalent or superior product.
Q: Is this filter suitable for both water-based and solvent-based paints?
A: Yes, our standard DPA cartridge is effective for both. The fiberglass media and treated cardboard handle the moisture from water-based paints without disintegrating. For extremely high-volume use with specific paints, we can advise on media density.
